Dental Handheld Laser Welder / 200W 400W Portable Laser Welding Equipment

Name: Dental Handheld Laser Welder 200W 400W Portable Laser Welding Equipment
Brand: Keyi
Price: 1 USD

Brand Name : Keyi

Model Number : KY-W-PO

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 sets per month

Delivery Time : 5-8 working days

Packaging Details : standard export wooden package

Wavelength : 1064nm

Welding depth : 1mm

Power : 200w 400w(others for optional)

Focal Spot Diameter : 0.15-0.45 mm

Contact Now

200W 400W Handheld Laser Welding Machine Portable High Precision

Features:

Handheld welding with five meters imported fiber, flexible, outdoor welding can be achieved

Handheld welding tip of the mode of operation, can realize any part of the workpiece and angle welding

Dual optical intelligent switching, time spectral energy distribution

Suitable for a variety of complex welding and devices spot welding

CCD camera surveillance system to facilitate observation and precise positioning

Applications:

Widely used in the kitchen industry, household appliances industry, the advertising industry, mold industry, stainless steel door and window industry, handicraft industry, home supplies industry, the furniture industry, the auto parts industry etc...

Specification:

Model	KY-W-PO
Average laser power	200W / 400W
Max energy of single pulse	75J / 120 J
Laser wavelength	1064nm
Pulse width	0.1-40ms
Laser welding frequency	0.5 -100HZ
Laser spot diameter	0.15-0.45 mm
Weld penetration	1mm
Power Supply	380VAC ± 10% / 50-60HZ
Power Consumption	≤ 6KW / ≤12KW
Water pressure protection	≤ 0.025MPa
Cooling water temperature	≤ 35 degrees
Temperature protection	45 degrees
Cooling water flow	10L/min
Weight	≤180kg
Cooling Way	Water cooling
Laser Type	Pulse

Product Tags:

micro laser welding equipment

laser soldering machine

Quality Dental Handheld Laser Welder / 200W 400W Portable Laser Welding Equipment wholesale

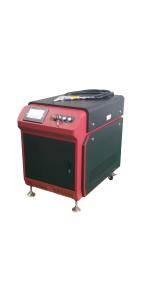

Dental Handheld Laser Welder / 200W 400W Portable Laser Welding Equipment Images
